Electronics Manufacturing

Electronics Manufacturing
Services(EMS)

One Stop Solution

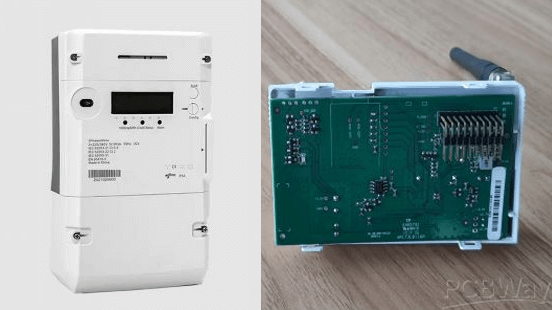

From getting involved in early design concept to packaging fully assembled devices that are ready for shipment, our one-stop shop solutions simplify and manage complexity in a the rapid evolving markets. High mix / low volume, quick turn prototyping and NPI services with no limits on quantity provides the much needed flexibility to produce the best product possible. Our operational knowledge across numerous industries permits clientele to reduce working capital in a number of ways. PCBWay excels at taking conceptual designs and transforming them into tangible quality products. We incorporate turn-key and consigned solutions to maintain convenience for our customers and simplifying the complex process of component sourcing.

One Stop Solution
Printed Circuit Board Assembly (PCBA)

Printed Circuit Board Assembly (PCBA)

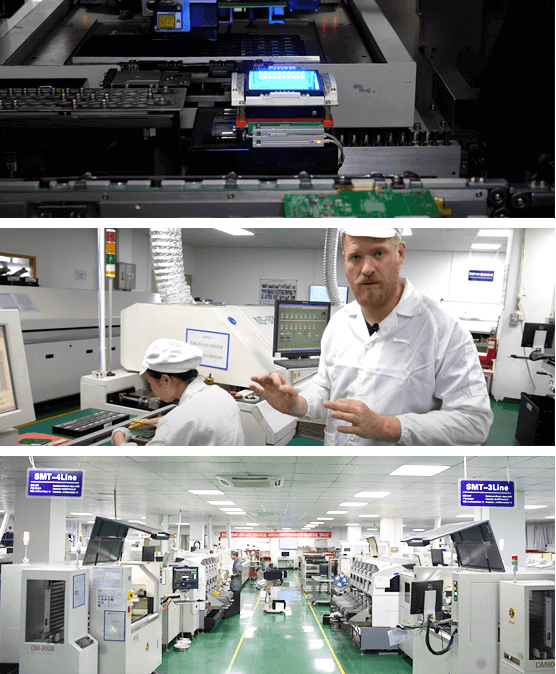

Assembling Printed Circuit Boards for prototyping & mass production is a specialty for PCBWay. Our team can support NPI prototypes to mass production. We are flexible in modifying PCB’s to your exact qualification whether it is single or complex multiple layered boards, we have the solution to all PCBA needs. Our state of the art technology and global facilities give us the capabilities to take on any volume of work. Key technical milestones at PCBWay include:

POP process
Able to process 01005, 3 mil micro BGA, AQFN
Board with size 10mm*10mm
BGA & micro BGA (ball grid array)
BGA Rework and BGA Reball
QFP, QFN, & AQFN (advanced quad flat no-leads)
RoHS/Non-RoHS compliant assembly
Clean or no clean process
Mixed technologies (through-hole and SMT)
100% Material procurement, 100% consigned material management, or hybrid
IPC-A-610 Class 3

System Assembly

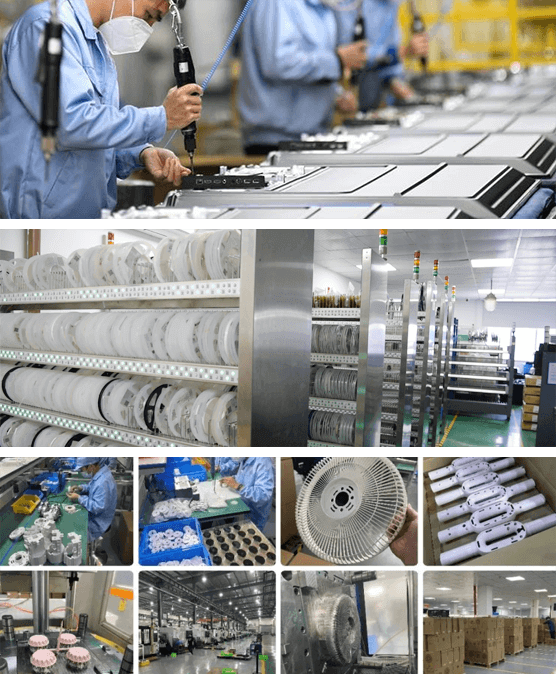

Using PCBWay’s complete box build and mechanical assembling services will cut time to market while building a complete product ready for market and shelves. We have assembled products for a wide variety of industries sectors such as consumer electronics, medical, industrial, telecommunications, broadcasting, life science, and optics. In addition to our full mechanical assembly services PCBWay can provide enclosures, electrical testing, burn-in, package design and direct shipping to our end users. We take it upon ourselves to leave all of our customers satisfied and confident in their new high quality products. PCBWay’s NPI to EMS transition plan will identify and resolve any issues from quality to processing, thus resulting in a lower assembly cost. Our Assembly services include:

Material procurement
Consigned material management
Plastic or metal enclosure
Complex final assembly
Encapsulation and conformal coating
Functional testing and QA
Environmental stress screening
Burn-in testing
Labeling and bar coding
Kitting
Documentation inclusion
Packaging
System Assembly
Failure Analysis

Failure Analysis

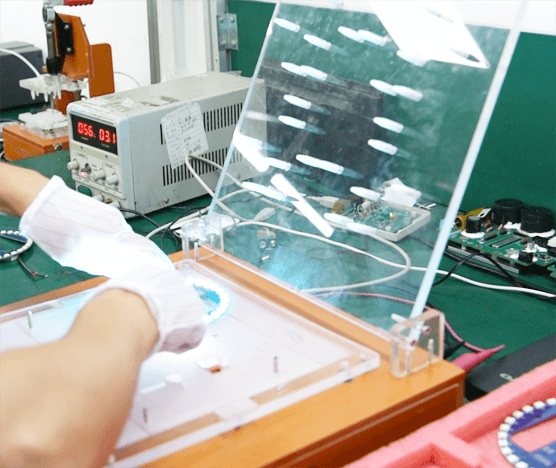

Learning from mistakes and fixing them are very important in the production process. So we incorporate failure review/analysis of each production lot yielding constant improvement of quality and boosting value. PCBWay uses a manufacturing execution system to ensure the manufacturing process runs smoothly and reinforce your products quality reducing the risk for failure.
